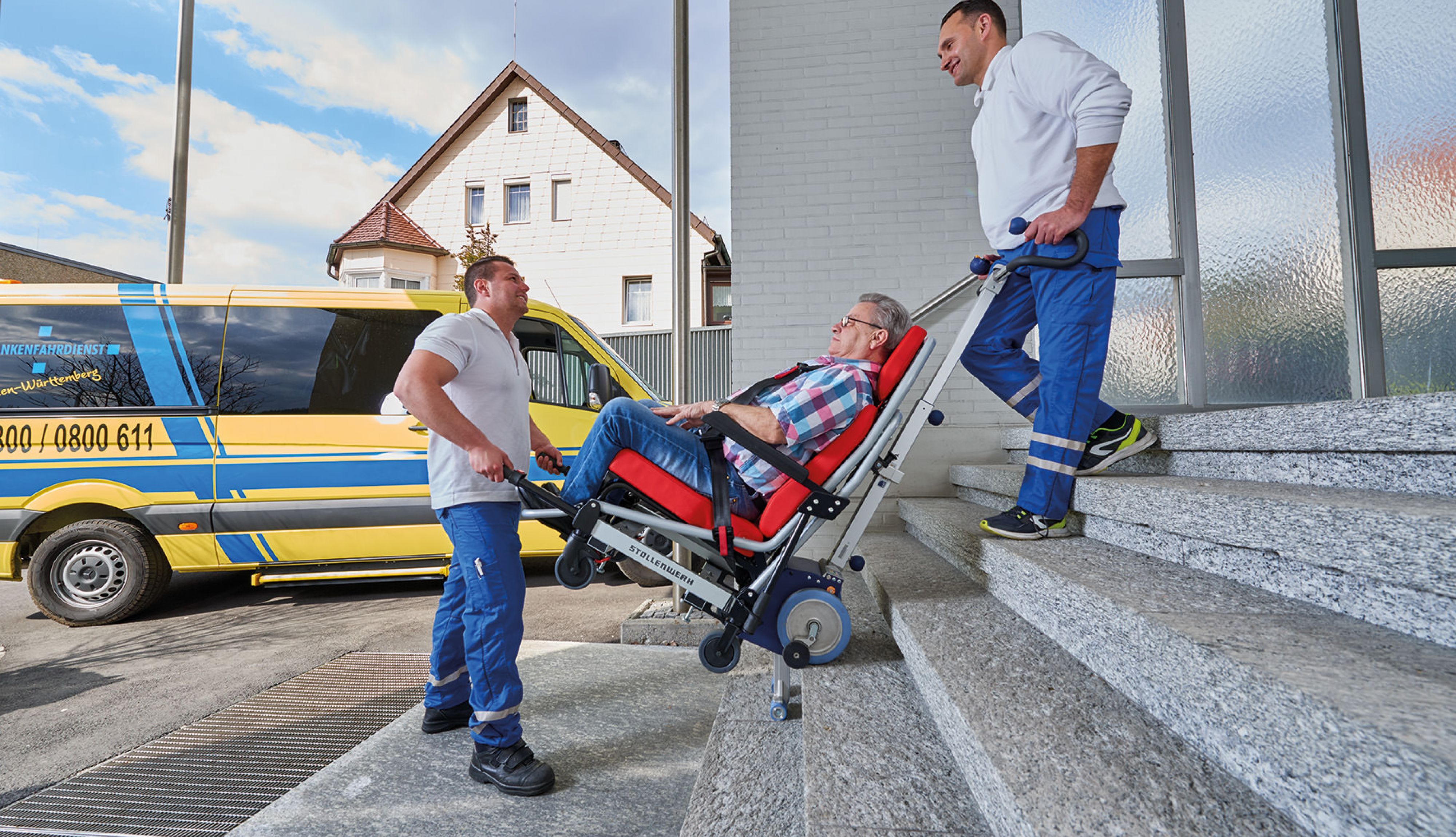

Das Bild zeigt zwei männliche Mitarbeiter eines Krankenfahrdienstes, die einen älteren Mann in einem Tragestuhl mit angebrachtem Treppensteiger eine Treppe hinaufbefördern. Im Hintergrund steht das Krankenfahrdienstfahrzeug.

S-MAX D1604

To be combined with carrying chairs
Das Bild zeigt zwei männliche Mitarbeiter eines Krankenfahrdienstes, die einen älteren Mann in einem Tragestuhl mit angebrachtem Treppensteiger eine Treppe hinaufbefördern. Im Hintergrund steht das Krankenfahrdienstfahrzeug.

S-MAX D1604

To be combined with carrying chairs

RELIABLE AIDS

FOR THE AMBULANCE SERVICE

When transporting patients, the ambulance personnel often has to carry the patients up and down stairs, either on the way to the doctor's office, where there is no elevator, or to the patient's home itself. The ambulance personnel has to master such challenges on a daily basis.

Herniated discs are not uncommon in these situations, and this physical strain can lead to permanent health problems over time. By using our technology, you can minimize the risk of injuries that may occur during manual stair transportation. Meanwhile, the physical strain on your employees is reduced, leading to increased job satisfaction and productivity.

With the help of the s-max D1604 stair climber, one person alone is able to comfortably transport the patient up and down stairs. It does not matter whether the staircase is indoors or outdoors, or whether it is straight or spiral - the s-max can be used almost anywhere.

WITH THE S-MAX D1604

BENEFIT TO THE MAXIMUM

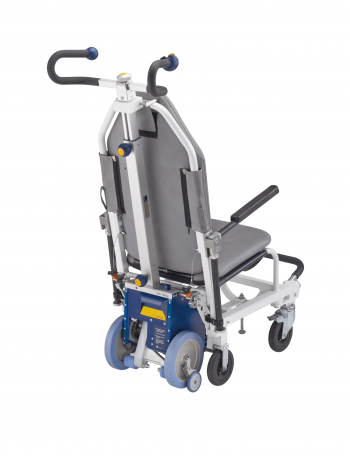

Das Bild zeigt die freigestellte Antriebs- und Griffeinheit des Treppensteiger s-max sella auf weißem Hintergrund. Sichtbar ist die graue Antriebseinheit mit Laufrädern und Sicherheitsbremsen, sowie die Griffeinheit mit Bedienteil. Der Treppensteiger ist über eine Halterung an einem Tragestuhl – hier im Beispiel ein Utila ALS 300 – angebaut.

Abbildung incl. Utila ALS 300

Usable on spiral staircases

The s-max offers high maneuverability even on spiral or narrow staircases.

Automatic braking function

The automatic braking function when descending is part of our safety concept.

Ergonomic and easy handling

All functions required for the climbing process can be operated with just one hand.

Auf dem Bild ist das Bediengerät des Treppensteigers zu sehen. Die Person, die den Treppensteiger bedient, drückt mit dem Daumen den Auf- und Ab-Schalter in Richtung abwärts. Außerdem ist der Geschwindigkeitsregler, der Ein-/Aus-Schalter und der Sicherheitschip zu sehen.

Unique ergonomics

Our control unit has been specially designed to provide you with maximum comfort during the climbing process - whether climbing up or down the stairs. With ease, you can use the control unit to activate or deactivate the stair climber, adjust the speed continuously or decide whether you want to go up or down the stairs.

The control handle also features a safety chip which ensures that the stair climber is only used by authorized persons. Therefore, you can always be sure that your stair climber remains in safe hands, even if you temporarily leave it in the hallway of an apartment building, at the doctor's office or in another public location.

In service of your safety

The stair climber has an integrated LED light on the lower part of the drive unit. This function provides optimum illumination of the steps even in poor lighting conditions. This is particularly important in bigger staircases with an automatic light control system.

One of the most outstanding features of our safety concept is the automatic braking function when descending. This innovative technology prevents the stair climber from being pushed too far over the edge of the stairs. The brakes activate on every step, ensuring optimum safety every time the stair climber is used.

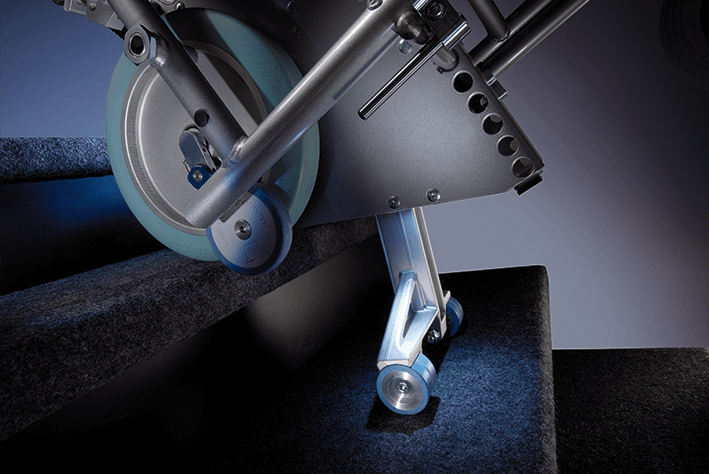

Das Bild zeigt den Steigvorgang der Treppenhilfe s-max. Der Steigfuß ist ausgefahren und setzt bereits auf der unteren Treppenstufe auf. Die Sicherheitsbremsen, welche am großen Laufrad befestigt sind, setzen am Stufenrand auf und schützen so vor einem abwärtsrollen. Die LED-Leuchte erhellt die Treppenstufen.
Das Bild zeigt eine Detailaufnahme der Antriebseinheit des Treppensteiger s-max sella. Man sieht den Drehgriff zur Griffmontage sowie die Folientastatur, auf welcher der ComfortStep sowie die Einzelstufenschaltung ein- und ausgeschaltet werden kann. Außerdem leuchtet die Akkuanzeige grün.

Climbing stairs newly defined

With the Comfort Step, the climbing dynamics of the s-max D1604 has been revolutionized and offers you an unrivaled comfort experience.

For you as a user, this results in an extremely pleasant and low-vibration climbing process. The Comfort Step is a serial feature of every s-max D1604 and works in single step mode as well as in the permanent climbing mode.

Crash tested by TÜV Rheinland

The stair climber s-max can be attached to a wide range of carrying chairs - also afterwards. Depending on the frame and the measurements of the carrying chair, the s-max D1604 can be used with a permissible total weight of 180 kg.

While driving in the vehicle, the s-max D160 can remain attached to some types of carrying chairs. These combinations are tested by TÜV Rheinland according to DIN EN 1789:2007+A2:2014 (crash tested) and visibly marked in our brochure (download at the end of the webpage). For all other carrying chair models, the stair climber must be carried in a separate storage box.

Das Bild zeigt zwei männliche Mitarbeiter eines Krankenfahrdienstes, die einen älteren Mann in einem Tragestuhl mit angebrachtem Treppensteiger eine Treppe hinaufbefördern.

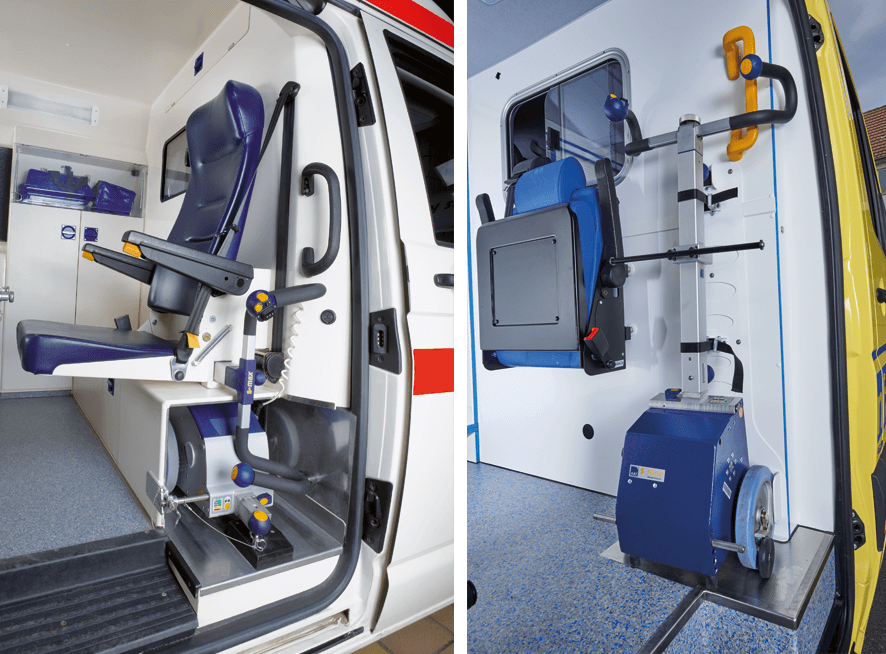

Hier werden zwei unterschiedliche Einbauvarianten im KTW gezeigt. Auf dem linken Bild ist das Verstauen des s-max in einem speziellen Fach abgebildet. Auf dem rechten Bild ist eine Wandhalterung zu sehen.

Installation options within your vehicle

It is also possible to carry the stair climber in a separate storage box. Various installation options are offered by a wide range of vehicle manufacturers.

A special charging socket on the stair climber in connection with the appropriate charging components also enables charging while driving.

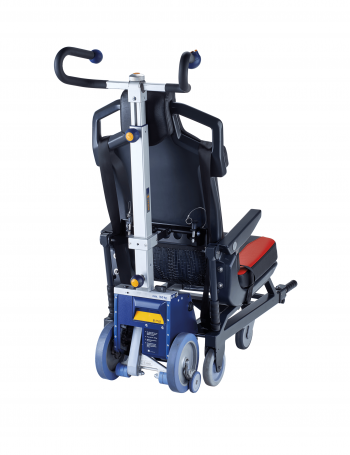

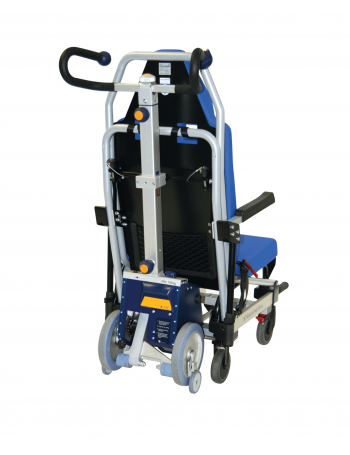

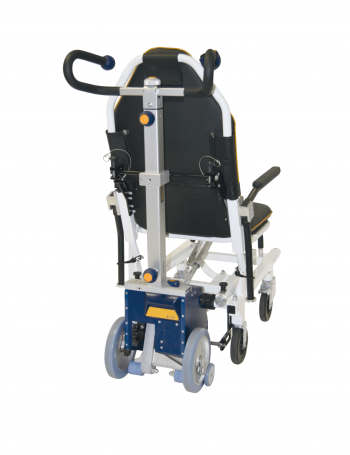

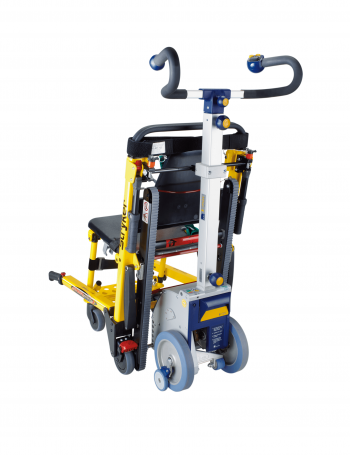

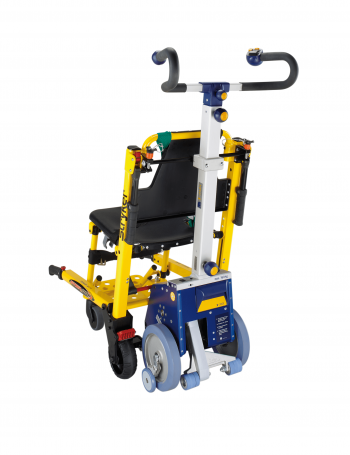

Our carrying chair combinations

The stair climber s-max can be attached to a wide range of carrying chairs - even afterwards. Depending on the frame and the measurements of the chair, the s-max D1604 can be used with a permissible total weight of 180 kg. The following slideshow will present you an overview of our existing carrying chair combinations.

Personal consultation is important to us - we will be happy to advise you individually by phone, e-mail or at your site.

    Das Bild zeigt die freigestellte Antriebs- und Griffeinheit des Treppensteiger s-max sella auf weißem Hintergrund. Sichtbar ist die graue Antriebseinheit mit Laufrädern und Sicherheitsbremsen, sowie die Griffeinheit mit Bedienteil. Der Treppensteiger ist über eine Halterung an einem Tragestuhl – hier im Beispiel ein Utila ALS 300 – angebaut.

    PERFORMANCE FEAUTURES

    THE S-MAX IN DETAIL

    The right features and reliable functionality are essential factors when searching for the right medical aid. Discover the difference and be inspired by our s-max D1604. For more product information, please use the download links below.
    140 kg

    PERMISSIBLE PERSON WEIGHT

    23 steps

    CLIMBING SPEED / MINUTE

    315 steps

    MAXIMUM / BATTERY CHARGE
